Collaborative research project and workshop by Robertina Šebjanič (SI), Kat Austen (UK/DE), Slavko Glamočanin (SI), Gjino Šutić (CRO), Piksel team (main organiser) + workshop participants

+ associated partner / mentor of the DIY bio workshop by Cristian Delgado

Deep_diving_mentorsDeep_diving_open_lab_at_BIKS 01

Context & concept of the workshop / research:

When we look up to sky and look into the space and wonder about what is up there, we sometime forget, that there is a lot still also to explore on the planet we live. We know more about the space than we know about the world’s seas and oceans, especially about the sound perception underwater. People are not so aware of the vibrant underwater acoustic of sounds of the deepness of ocean, except for the crash of a wave against a land. Whales, shrimp, seals, dolphins, and a variety of other creatures of the deep live in a watery acoustical ­ sonic environment. The arrival of steamships and other human­made interventions into the ocean soundscape has contributed disturbing noise to this rich soundscape.

The workshop / project encourage an inter­relationship between sound, nature, and society, as a starting point for the rethinking of the possible developed of nicer sonic environments for the animals living in the world’s oceans and sea’s. The underwater sound pollution is the reality of recent development and industrialization reflecting on the sea. Especially the upper level of the seas ­ where there is most of the living in the seas and independent by the level of the sonic pollution in the sea. We would also try to research the deep sea level to understand what is happening there.

World seas and oceans are presenting more than 70% of surface of Earth. 97% of it is saltwater, 2% is fresh water in the form of ice and only the remaining 1% is drinking water, which is distributed around the planet very unevenly. The exploration of any ecosystem requires detailed study and observation. The ocean is the complex, challenging, and harsh environment on Earth and accessing it requires specially designed tools and technology. It has only been within the last 50 years that technology has advanced to the point that we can examine the ocean in a systematic, scientific, and non invasive way. Our ability to observe the ocean environment and its resident creatures has finally caught up with our imaginations and helping us to understand it also in the ways that we did not imagine them before.

“Already back at the renaissance 1490 Leonardo da Vinci observed how the sound of ships travelled long distances underwater. The sound of ships in the 15th century included the noise of rudders and rigging, oars and the handling of cargo. Seafaring, while not in its infancy, was a “life driven” technology; the power of wind and human muscle generated the only anthropogenic noises in the sea. Over the next 400 years, acoustic technology at sea involved innovations such as underwater bells and whistling buoys on submerged rocks and reefs to warn navigators and captains away from marine hazards. With the advent of steam powered engines, the quality and level of noise began to shift dramatically. With the ability to navigate to, and develop the far reaches of the globe, the use of dynamite and diesel driven pile drivers began transforming the soundscape of coastal waters worldwide. Once the mechanization of seafaring and coastal civil engineering took hold, ocean noise began increasing exponentially and it started to overtake also the sound scape environment of the animals” * (from the Soundscape The Journal of Acoustic Ecology​)

________________________________________________________________________________________________________________________________________

Workshop / project  During the 5 day work intense inter ­ disciplinary research of four main mentors and collaborators did open the process of the exploration of the context of DIY biology, DIY chemistry and sound. An DIY laboratory in the context of the Piksel festival was the main environment for the workshop.

We did spend time out on the field trips to the fjords and surroundings in Bergen, to collect needed data.

Introduction to research main topic’s:

underwater sound / noise polution

microplastic polution

________________________________________________________________________________________________________________________________________

Underwater sound / noise polution

Audio summary and visualization – Pikslo Deep Dive visualization

4 hydrophone recordings we made in the sea around Bergen, Norway on 21.11.2015.

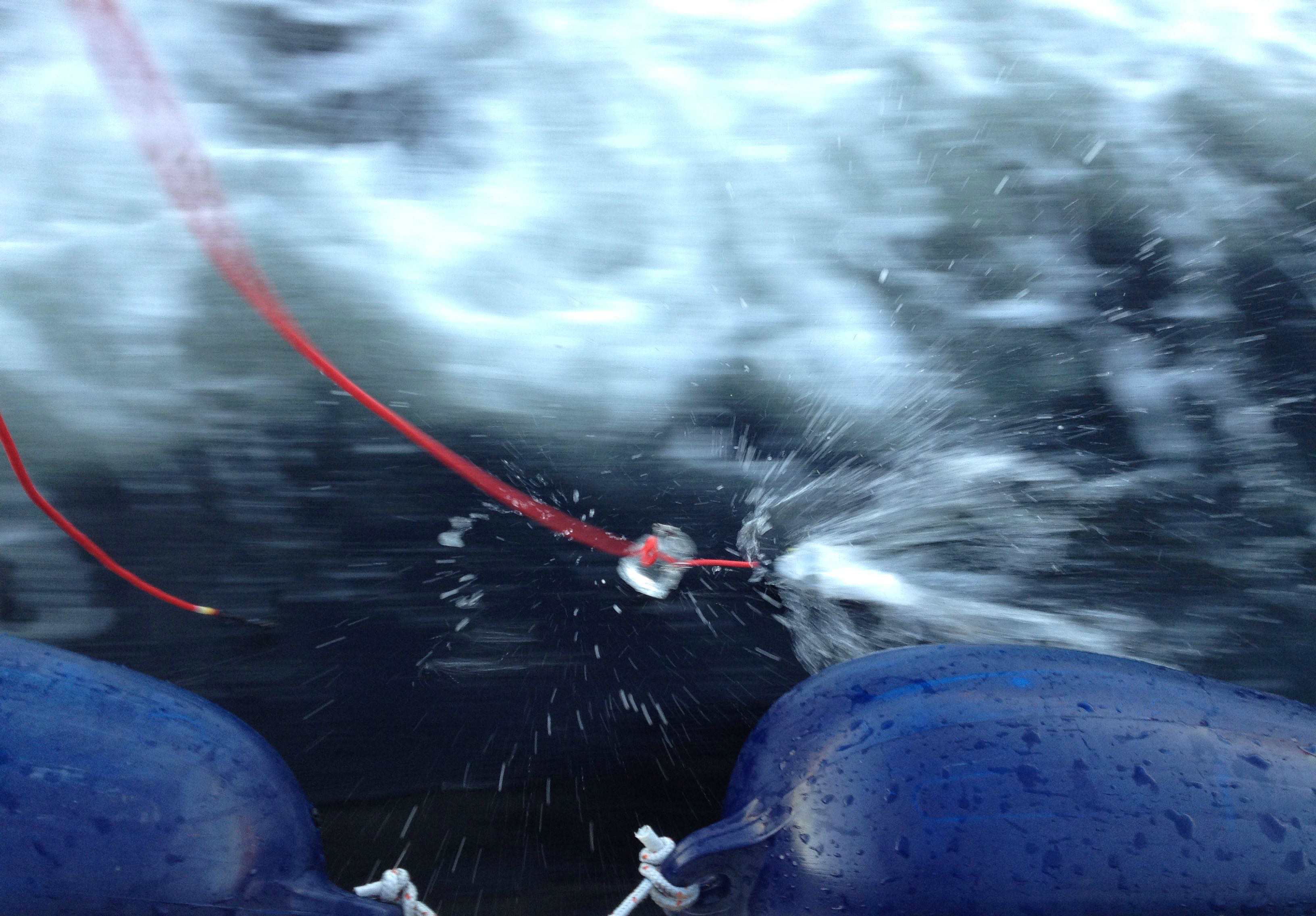

We did made with workshop participants a bunch of DIY Hydrophones and went on filed trip with boath around the fjords of Bergen with them.

Visualized by Slavko Glamočanin with OpenGL in realtime.

(00:00) outside the harbour,

(00:42) a boat passing by on the same spot,

(01:19)  a secluded bay

(03:12) a point in the open

Audio recordings available here: https://www.freesound.org/people/slavko321/packs/18501/

Thanks to http://www.ultranoise.es/ aka Enrique Tomas ] for lending us the professional hydrophone (which we compared to our DIY  Hydrophones 🙂

GPS locations of the audio recordings and the audio recordings coming soon..

Some photos of a great field recording trip:

Fjords_deep_diving_filed_trip_04_ Fjord_hack_fiedl_trip_04 Deep_diving_field_trip_03 Fjords_boat_trip_deep_diving

________________________________________________________________________________________________________________________________________

Microplastic polution – DIY bio and DIY chemistry research

ALGAE MICROPLASTIC TESTING PROTOCOL

Algal Samples:

Ascophyllum nodosum – formally identified as Fucus vesiculosus, known by the common name bladder wrack or bladderwrack (bubbles)

Oarweed or Kelp (Laminaria digitata) (flat without bubbles)

Fucus serratus (second sample from outside the harbour)

Testing protocol: 1 g of each type of algae into test tubes, 4 iterations of each Stock solution of vanish – 40 g to 80 mL water Stock Iron Solution 3.75g Fe II sulphate, 4g Mexican lemon salt powder (lemon juice, citric acid, salt and sugar), 250 ml water (boiled)

To 1g of each seaweed in a small test tube add: Sample 1: 5ml Fe 5ml Percarbonate

Sample 2: 5ml Fe II aq stock 5ml Percarbonate 0.5 ml of Ajax all purpose cleaning gel

Sample 3: 5ml Fe 5ml Percarbonate 2ml Ajax

Sample 4: 5ml Fe 10 ml 3% hydrogen peroxide solution

Left standing for 10 minutes Heat to 80 degrees C then turn off heat and leave to stand.

Diy_microplastic_gjino_kat_01 Microplastic_reaserchAlgae_collage

Mareano programme, which records all instances of marine litter that the researchers find

http://mareano.no/en/about_mareano

http://mareano.no/en/maps/mareano_en.html

This has little information on the region around Bergen
Methods for analysing microplastics: http://marinedebris.noaa.gov/sites/default/files/publications-files/noaa_microplastics_methods_manual.pdf

Destroying organic compounds (for microplastic analysis):

https://en.wikipedia.org/wiki/Fenton’s_reagent

(hydrogen peroxide + Fe solution)

we are using Sodium percarbonate instead of hydrogen peroxide

Venish has 30% sodium peroxide + enzimes (protein & starch digestion – protease & amylase)

http://rbeuroinfo.com/ – Venish composition
Water lab analysis out of the harbour

Temperatire 14 deg C

767 x10

760 x10

pH 6.6

________________________________________________________________________________________________________________________________________

Collaborative reaserch project

authors, developers of the project:

Robertina Šebjanič (SI),

Kat Austen (UK/DE),

Slavko Glamočanin (SI),

Gjino Šutić (CRO),

Production: Piksel festival, 2015

________________________________________________________________________________________________________________________________________

________________________________________________________________________________________________________________________________________

*listen also to Robertina Šebjanič Liquefying //  Underwater sound scape – remixed hydrophone recordings into new acoustic sonic wave.

see also Kat Austen –  Coral Empathy Device

Information from the DIY microplastic experimentation and conversations with researchers from Bergen’s Marine Institute, alongside sound recordings from the DIY hydrophone field trips, informed the design of a prototype Coral Empathy Device. The device obliterates the visual, employing sound, pressure, texture and smell to translate messages of anthropogenic marine intervention between the experience of coral in the Norwegian waters and the experience of humans on terra. Liquid to air, coral to human, the Coral Empathy Device prototype is an experiment in interspecies empathy.
